630/20nm Optical Narrow Bandpass Filter For LiDAR Ranging

630/20nm optical filter is an optical filter with central wavelength of 630 nm and bandwidth of 20 nm. Coligh provides high quality 630/20nm filters with high transmission and deep blocking depth for LiDAR ranging application.

  • High transmission to 97%
  •  With a narrow bandwidth 20nm
  •  Blocking depth above OD4
  • Highly stable and reliable performance
  • Wide angle of incidence (AOI) range 0-35 degrees
Products Categories
Get A Free Quote
Contact Form Demo (#3)

630/20nm Optical Narrow Bandpass Filter Discription

Coligh is a leading supplier of 630/20nm optical narrow bandpass filter. It effectively transmits 620-640nm light, shields other wavelengths of light, and isolates stray light. When it is used to receive reflected light, it enhances radar signals and improves the signal-to-noise ratio. Through the 0-35 degree incident angle change and high transmittance deep cutoff depth, the target reflected light can be extracted more clearly within the range of long distance and large angle.

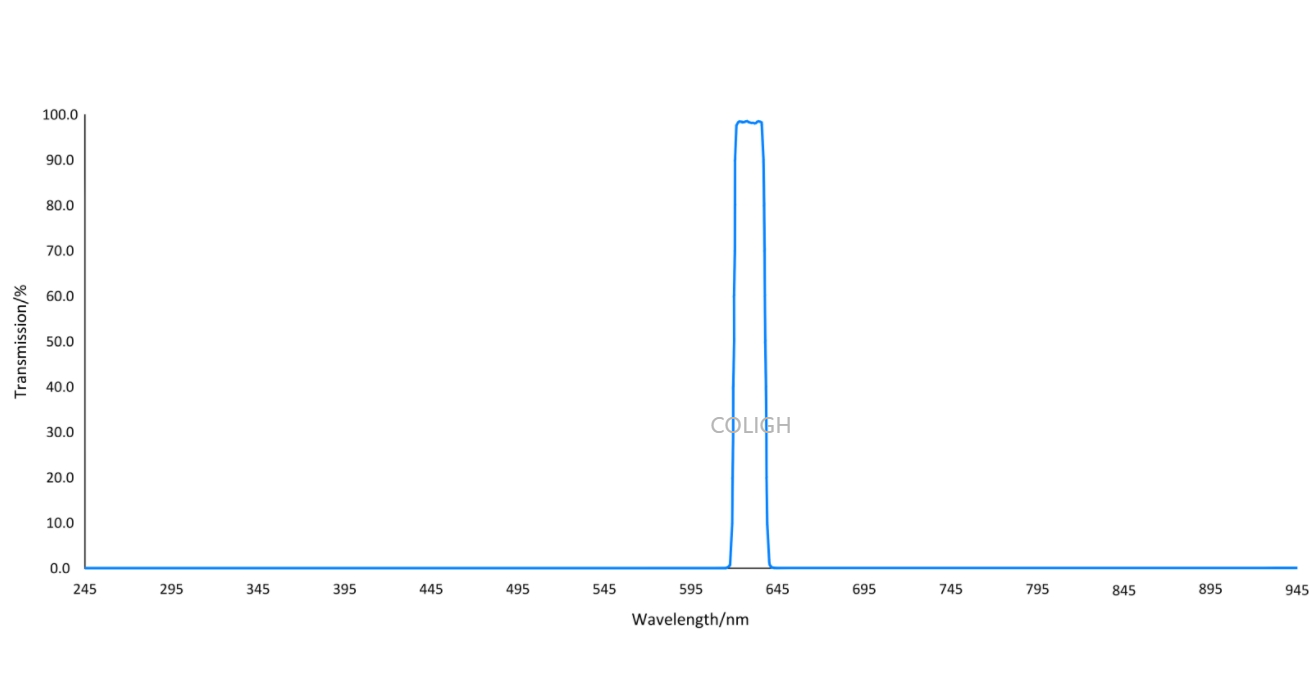

630/20nm Optical Narrow Bandpass Filter Spectrum Curve

630/20nm Narrow-band interference filter specification

Optical Filter type: Visible Bandpass Filter Substrate: Float glass, B270, Fused Silica
Center wavelength 630+/-3 Angle of Incidence OEM from 0 deg to 35 deg
Full half bandwidth 20+/-3 Coating menthod Hard Coating
Transmission average >=95% Size: Any Size custom  below 100*100mm
Blcoking wavelength range 200-1100nm Clear aperture: >90% of the diameter or size
Blocking depth: OD4 and above Thickness Option:  0.5mm, 0.55mm, 0.7mm, 1.0mm, 1.1mm or custom
Surface quality:  80/50 60/40 Application lidar light detection

630/20nm Narrow bandwidth Optical Filter Applications

In the LiDAR system, the 630nm optical narrow bandpass filter helps the system achieve high-precision distance measurement and environmental perception through its specific optical characteristics.It is mainly used in the following aspects:

  •  In autonomous driving, the receiver uses a 630nm narrow band filter to filter out ambient light of other wavelengths, calculate the distance of obstacles, and generate a 3D environmental map
  • The LiDAR system carried by the drone emits a 630nm laser, and the reflected light passes through the 630nm filter to scan the ground and surrounding environment
  • In industrial measurement, the industrial LiDAR system uses a 630nm laser to measure the distance, size and position of objects
  •  The robot can be equipped with a LiDAR system to emit a 630nm laser to scan the surrounding environment

Get Free Quote of 630nm Optical Filter For laser LiDAR Detection

Large amount in stock. Wide AOI, high precision—inquire now!
