CWDM Communication Filters

CWDM communication filters is an optical filter specially designed for wavelength division multiplexing technology in optical communication systems. Coligh supplies customers with a variety of customized communication filters.

It has the key features as below:

  •  Wide wavelength from 1260-1640nm
  • High isolation and low insertion loss
  • Central wavelength: ±1 nm tolerance Passband width ≥ ±7.3 nm
  • Low reflection and high reflection isolation
Products Categories
Get A Free Quote
Contact Form Demo (#3)

CWDM Communication Filters Description

CWDM Communication Filters supplied by Coligh is a high-performance filter, which is widely used in optical communication, data center and telecommunication network.

  • CWDM filter has the working wavelength of O band (1260-1360nm) and C band (1460-1640nm), which can support a variety of optical communication needs, can efficiently combine and split optical signals, and improve the bandwidth utilization of telecommunication system.
  • The isolation between adjacent channels is >30db, which improves the clarity of the signal and reduces the crosstalk of different channels. At the same time, the insertion loss in the passband is controlled within 0.35db, which reduces the signal loss during transmission.
  • This filter has a center wavelength tolerance of ±1 nm, and the wavelength is selected with high precision to ensure the stability of the signal. The passband width ≥ ±7.3 nm can adapt to a variety of data needs and effectively ensure the transmission of high-frequency data.
  • Back reflection isolation ≥ 13 dB can effectively prevent the signal from being reflected on the back of the filter. In addition, the reflection isolation is very low, ≤0.2%, which can reduce the error caused by reflection.

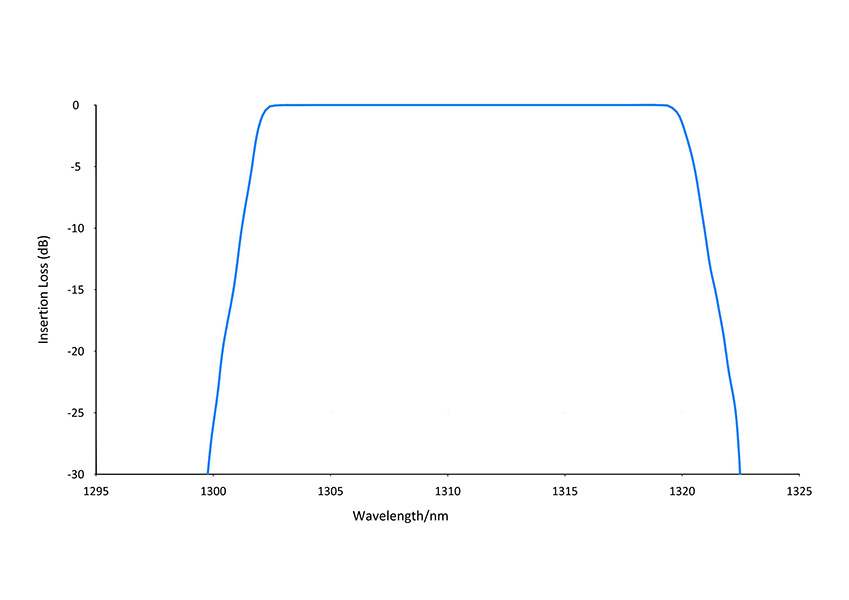

CWDM Communication Filters Spectrum Performance

CWDM Communication Filters Technical Datasheet

Parameters Specifications
Operation Wavelength 1260-1640nm
Angle Of Incidence Custom, 5.2, 8, 13.5…deg
Center Wavelength @ 3dB 1270,1271,,1291,1311, 1331,1511, 1531, 1551, 1570  +/-1nm
Pass Band Width @ 0.35dB >= ±7.3nm
Stop Band Width <= ±12.7nm
Max IL within PassBand <= 0.35db
Reflection Isolation >= 13.0db
Ripple within  PassBand <= 0.3db
Ripple within StopBand <= 0.15db
Max IL within StopBand <= 0.2db
Transmission Isolation within Adjacent Channel >= 30db
Polarization Dependent Loss within PassBand <= 0.1db



CWDM Communication Filters Applications

CWDM communication filters are suitable for multiple application scenarios such as optical communication, data center, metropolitan area network, 5G forwarding/returning, fiber optic sensing, etc. For example:

  • In CWDM transmission system, optical signals of different wavelengths are transmitted on the same optical fiber to achieve large-capacity data transmission
  • In data center interconnection and cloud computing, it is widely used for data center interconnection to achieve large-scale data transmission
  • In 5G network deployment, CWDM can be used for fronthaul and backhaul transmission between base stations. CWDM communication filters can reduce interference between channels and allow high-quality signal transmission
  •  Suitable for fiber optic sensing systems in oil, gas and smart grid monitoring to improve network transmission efficiency
